I-tubular heht sterilizer

I-IP ngumthengisi we-tubula heht sterilizer ehlangabezana neemfuno zabathengi kwinkqubo yemveliso yokubonelela. I-tublar sterlizer inokubulala kwaye inyange i-viscofity ephezulu. Oomatshini bethu be-Sterilizoris basetyenziswa ngokubanzi kumashishini anjengokutya, iziselo, kunye neemveliso zobisi.

Thumela uMbuzo

Ingcaciso yeMveliso

I-tubula iht sterilizer sisixhobo esisetyenziswa ngokuqhelekileyo seSterilization kwishishini lokutya kunye neshishini. Izixhobo zinenkqubo yezinto ezibonakalayo, inkqubo yamaqondo ashushu amaqondo ashushu, inkqubo yokufumana i-vacuum, inkqubo ye-homoning, inkqubo yokucoca, inkqubo yokucoca i-CPC, kunye nenkqubo yokucoca i-CPC. The product is applied to the sterilization production of fresh milk, pasteurized milk, sour milk, colored milk: fruit juice, tea drinks, wine, ice cream, soy milk, dairy beverages, longevity milk, jam, soy sauce products, and other products.

ICandelo leMveliso:

Inkqubo yolawulo ye-tube sestilize ineentlobo ezimbini: ubumbeko oluzenzekelayo kunye noqwalaselo oluzenzekelayo.

I-PlC ngokupheleleyo yoqwalaselo: Sebenzisa itekhnoloji yenkqubo ye-PLC, ngokweemfuno zenkqubo yenkqubo, inkqubo yemveliso yonke ilawulwa kwaye isebenza. Iza nenkqubo yokucoca i-CIP yokucoca ngokuzenzekelayo. Ifinyezwe njengesixhobo esizenzekelayo se-tube.

Uqwalaselo oluzenzekelayo: Inkqubo yonke yokusebenza ilawulwa ngolawulo oluzenzekelayo. Umqhubi unokulawula impompo nganye, i-valve, kunye negunya le-cirlux kwiphaneli yokulawula. I-PID yeqondo lokushisa ukuze ligcine iqondo lobushushu. Rhoqo urekhode ubushushu be-sterilc kwirekhodi. Ifinyezwe njenge-semi-ezenzekelayo ye-tube.

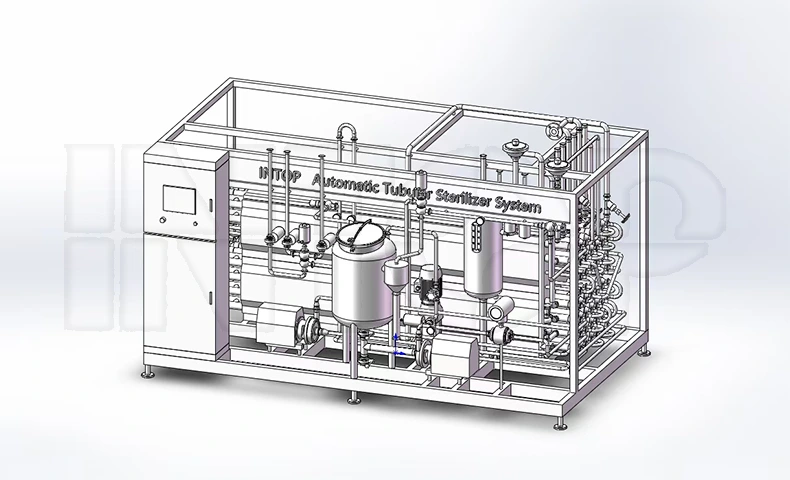

Tubular UHT Sterilizer

UMGAQO-NKQUBO WOBUCHULE:

Kwimeko eqhubekayo yokuhamba, umbandela ushushu kwi-138-15 degrees celsius ngomsindo onobushushu kwaye ugcinwe kwiqondo lokupakisha lelinye (kwaye ugcwaliswe kwizikhongozeli zokupakisha kwindawo yendawo yokujonga. Phantsi kweemeko zobushushu obuphezulu, yonke inkqubo ye-sterilizal iya kuthi ngoko nangoko ibulala i-microorganisms kunye nee-spores ezinokubangela i-spoilage yezinto kunye nokuwohloka, ngelixa kugcinwe i-flavory yesondlo kunye nesondlo. Le teknoloji yokulungisa kunye nendlela yokuphathwa kwempahla echanekileyo yokuthintela ukungcola kokutya kwaye kwandise kakhulu ubomi beemveliso zemveliso. Kungcono ukusebenzisa i-Tebe ye-STE YAHLUKO YAMABHUNGA OKUSETYENZISIWEYO SESIQINISEKISO SESIQINISEKISO SESIQINISEKISO, NJENGOKWENZA INDAWO YOKUZIPHATHA KAKHULU KAKHULU NGOKUGQIBELA IINKCAZO ZE-PAME STEAM.

Imveliso yeParameter:

Model	Uht-2	Uht-2	Uht-3	Uht-4	Uht-5
Umthamo wemveliso (L / h)	1000	2000	3000	4000	5000
Iqondo lobushushu lezinto ezibonakalayo (℃)	5	5	5	5	5
Ixesha lokugcina (s)	I-4-15	I-4-15	I-4-15	I-4-15	I-4-15
Iqondo lobushushu (℃)	I-95 ~ 125	I-95 ~ 125	I-95 ~ 125	I-95 ~ 125	I-95 ~ 125
Iqondo lokushisa le-Outlet (℃)	I-4-20	I-4-20	I-4-20	I-4-20	I-4-20
Uxinzelelo lweSteam (MPA)	I-0.4 (0.6)	I-0.4 (0.6)	I-0.4 (0.6)	I-0.4 (0.6)	I-0.4 (0.6)
Ixabiso le-Steam (kg / h)	130	160	240	320	400
Uxinzelelo lomoya (MPA)	0.6	0.6	0.6	0.6	0.6
Ukusetyenziswa komoya (l / h)	50	50	50	50	50
Ubungakanani (mm)	3500 * 1600 * 1800	I-4500 * 2000 * 1900	I-4500 * 2500 * 2000	I-5000 * 2000 * 2000	I-5000 * 2000 * 2000
Iindleko zombane (kW)	8.75	12	18	21	25

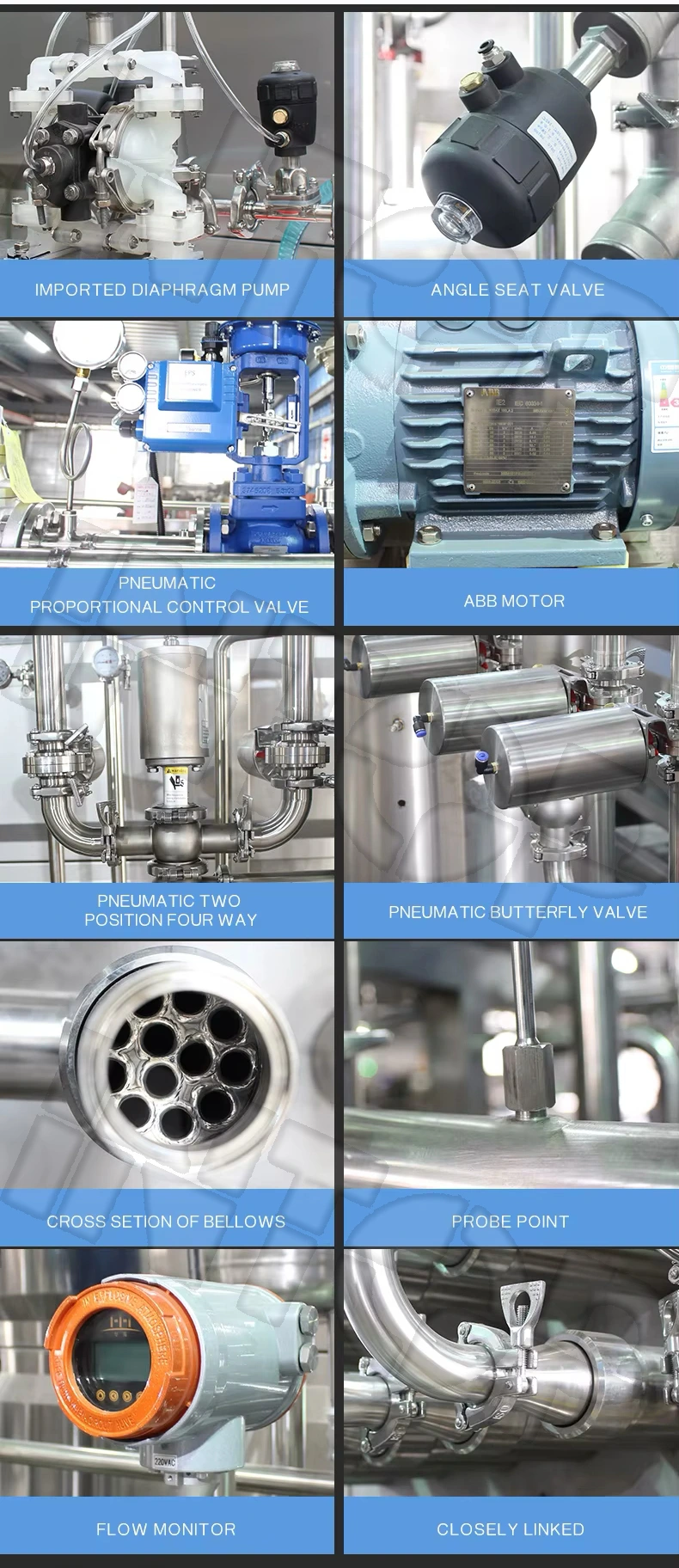

Product detail drawing

Iithegi ezishushu: I-tubular heht sterilizer, umatshini we-uht sterilizer, izixhobo zokuqhubela phambili ze-ASEptic
