ITanki yokutsalwa

I-Intop ngumzi-mveliso wetanki yotsalo, kwaye itanki yokutsalwa kukuvuza kunye nezixhobo zokutsalwa ezisetyenziswa kumayeza, ibhayoloji, ukutya kunye namashishini amachiza. Isebenza ngokubanzi ekutsalweni nasekufakweni kwezithako kumashishini afana namayeza emveli aseTshayina, izityalo, izilwanyana, ukutya kunye neekhemikhali.

Thumela uMbuzo

Ingcaciso yeMveliso

Itanki yokukhupha sisixhobo esisetyenziswa ngokuqhelekileyo sokuvuza kunye nezixhobo zokukhutshwa kumashishini amayeza kunye neekhemikhali, ngakumbi afanelekileyo ukukhutshwa kunye nokukhutshwa kwamacandelo aqulethwe kwiimveliso zezityalo. Isakhiwo sinomzimba wetanki, i-screw propeller enesixhobo se-axial isikhundla ngaphakathi komzimba wetanki, kunye ne-shaft ejikelezayo edityaniswe ngaphandle komzimba wetanki. Uphawu lwayo kukuba ne

Itanki yokutsalwa kwe-countercurrent eqhubekayo icwangciswe kwindawo ethambekele, kunye ne-port yokukhupha idibaniswe kwi-port ye-feed ukwenza umdibaniso. Itanki nganye inezibuko zesondlo kumzantsi wecala elingasentla, isango lokukhupha ulwelo olushiyekileyo kwindawo esezantsi, indawo yokungenisa engamanzi okanye izibuko lokukhupha kwindawo ephezulu yetanki, kunye nezibuko lokukhupha kwindawo esezantsi.

Udidi lweMveliso

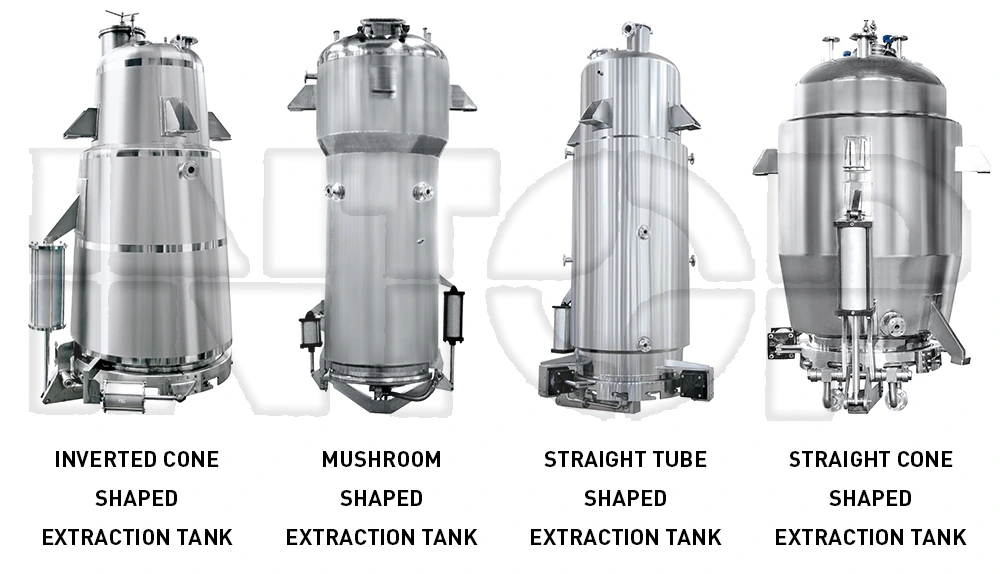

1. Ngokwenkangeleko, inokohlulwa ibe yitanki yotsalo emile okwekhowa, itanki yokutsalwa emile okwekhowuni, itanki yokutsalwa emile okwetyhubhu ethe tye, kunye netanki yotsalo emile okwekhowuni ethe tye.

2. Ukwahlulwe ngenjongo kwitanki yokutsalwa kwe-anthocyanin, itanki yokukhupha amayeza esintu, itanki yokutsalwa kweoli eyimfuneko, njl.

Extraction Tank

IiParameters zobuGcisa beMveliso

Umzekelo	TQ-01	TQ-02	TQ-03	TQ-04	TQ-05
Umthamo(L)	1200	2300	3200	6300	8500
Uxinzelelo ngaphakathi kwetanki	0.09Mpa
Uxinzelelo ngaphakathi kwebhatyi	0.3Mpa
Ububanzi bezibuko lokutyisa(mm)	400	400	400	500	500
Indawo yokufudumeza(m2)	3	4.7	6.8	10	12
Indawo yokujiya (m2)	4	5.4	8	10	15
Indawo yokupholisa (m2)	1	1	1.5	2.2	2.2
Indawo yohluzo(m2)	0.25	0.25	0.25	0.3	0.3
Ububanzi bocango lokukhupha i-slag(mm)	800	800	800	1000	1000
Ukusetyenziswa komphunga(kg/h)	285	346	570	718	903
Ubunzima besixhobo (kg)	1800	2050	2400	3025	4030
Izibuko lombhobho wokufudumeza umphunga	DN50	DN50	DN60	DN60	DN80
Izibuko lombhobho womphunga wesibini	DN80	DN80	DN100	DN100	DN100
Umbhobho wamanzi okupholisa	DN50	DN50	DN60	DN60	DN70
Amandla emoto	2.2kw	4.0kw	5.5kw	5.5kw	7.5kw
Isantya sokuvuselela (ppm/min)	21	21	32	32	32

Ubume bemveliso

Itanki yokukhupha iqulethe i-tank yokuphakamisa umzimba, inkqubo yokupholisa, inkqubo yokuvuselela, inkqubo yokutya, inkqubo yokukhupha, inkqubo yokucoca, inkqubo yokucoca, ulawulo lombane, izixhobo ze-centrifugal, kunye nezinye izinto.

1. I-tank ye-extraction body ixhotyiswe ngejacket yokutshintshwa kobushushu obulula, kunye nomngxuma phezulu kunye neesilinda ezimbini phantsi, kunye ne-slag discharge door switch;

2.Umsebenzi wecondenser kukujiya umphunga wolwelo kunye nokubuyisela utywala;

3. Umsebenzi we-cooler kukupholisa i-condensate kunye ne-solvent;

4. Umsebenzi wokwahlula amanzi e-oyile kukwahlula ulwelo olupholileyo olufunyenweyo kwioyile enevumba elimnandi ngexesha lokutsalwa kweoyile;

5. Umsebenzi we-gas-liquid separator kukwahlula i-gas-liquid kunye nokuthintela ulwelo ukuba luqhutywe kwitanki ngexesha lokukhupha umoya;

6. I-reducer isetyenziselwa ukuphazamisa izinto ngaphakathi kwetanki, ukwenzela ukuba amacandelo asebenzayo akhutshwe kwi-solid anokufudumeza kwaye abiliswe ngaphandle, okunenzuzo yokususwa kwe-slag.

Iithegi ezishushu: UMvelisi weTanki yokutsalwa, uMboneleli weTanki yokutsalwa kwemizi-mveliso, iWholeliseli yeTanki yokutsalwa ngokweSiko
